Double Shot Reverb

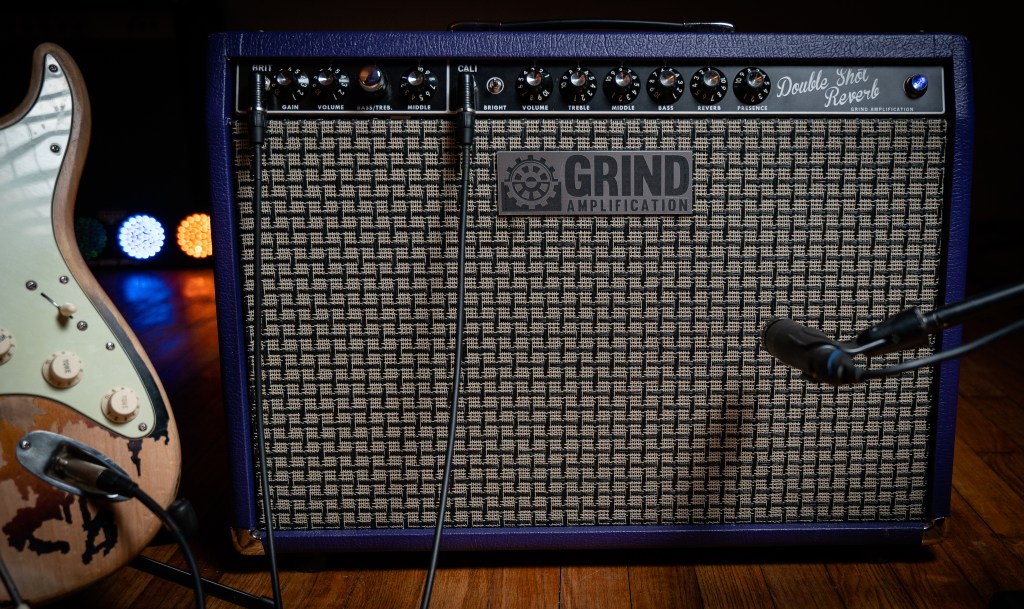

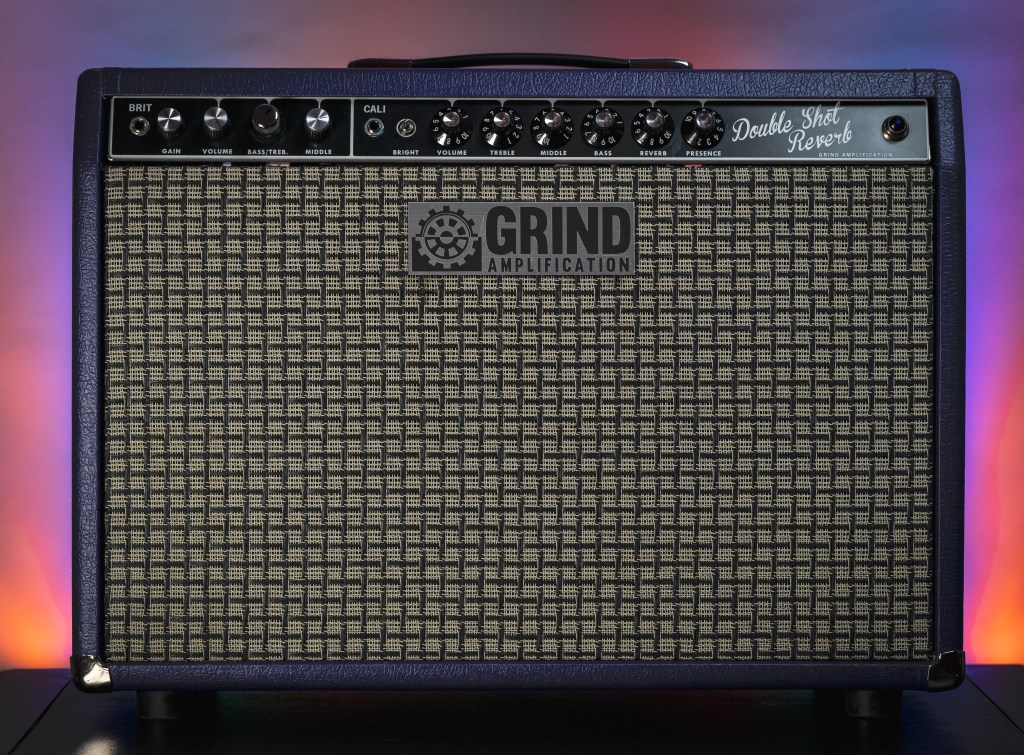

The Double Shot Reverb has two independent channels, Cali and Brit. This amp is completely hand wired using custom turret boards. I designed this amp for guys like myself and many others who like to gig with a dual amp setup, typically a Marshall and a Fender with different effects going to each, and using an amp A/B/Both switcher to go between the amps. This amp is available in 22W, 40W, or 100 Watt versions, all paired with Neodymium speakers for a whole lot of amp in a very portable, lightweight package. Specs for each model are listed below.

The Cali channel is voiced similar to a juiced up Super Reverb, with a slightly modified tone stack that uses Sozo NexGen Blue Molded Vintage Caps for those classic Cali sounds. It also has that genuine tube-driven spring reverb through a carefully selected, long style spring reverb tank. This channel is great for bold or shimmering cleans, or for those quintessential overdriven tones.

The Brit channel is a cascaded four gain stage preamp of its own design with a bit of British heritage. This classic framework was shaped into a brand new format that tames the shrillness of a typical high gain circuit while still delivering the crunch and harmonics in spades, all with a very flexible tone stack. We use Mallory 150M capacitors in the Brit side for those killer modded amp tones you’ve dreamed of.

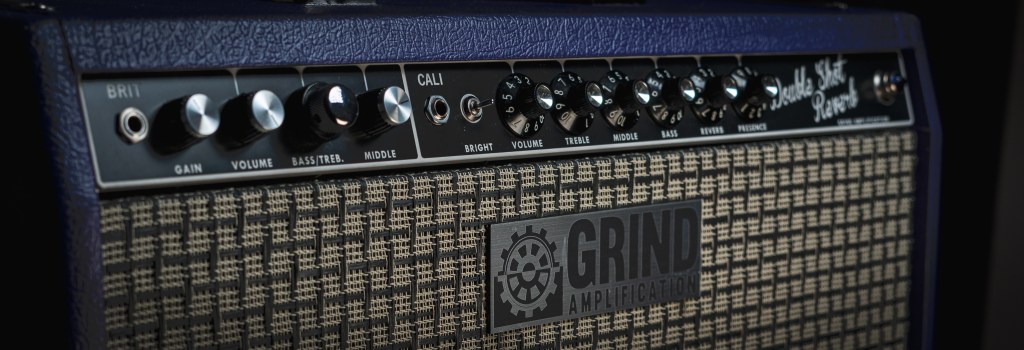

While the reverb is dedicated to the Cali channel, the Double Shot has a global Presence control to help customize the overall high end frequency response to suit your exact needs.

Using an amp switcher setup on this single amp, you can not only switch between channels, but you can also use both channels at the same time – something that’s impossible on a channel switching amp. If you have a stereo delay pedal, you can have your delays through the Cali channel and the core tone through the Brit side. You can also send a looper though one side and solo through the other channel, etc..  It’s a much easier stage setup with a smaller footprint and no need to worry about potentially dangerous ground lifts when using multiple amps not to mention the extra current draw, portability and ease of setup, etc.

All of our amplifiers are built to order, so if there are any customizations you’d like, just let us know. Because all of our amplifiers are custom built to spec, there is an average 6 week build time. Contact us for current build schedules or to place your order.

Models and Specs:

DSR22 – 22 Watts
– 12AX7, 12AX7, 12AT7, 12AX7, 12AT7, 6V6GT, 6V6GT
– available with solid state or tube rectifier(5AR4)
– 100% hand wired in the USA on custom designed turret boards
– Hammond Transformers
– High Grade, 3 prong molded plug NEMA 5-15P 12 foot Power cord
– Deluxe Reverb size cabinet made from solid pine with precision cut finger joints
– Lightweight 12” Celestion Creamback Neodymium speaker
– 36 Pounds (approximate weight – density of cabinet wood can affect overall weight)
– MSRP: $3,500

DSR40 – 40 Watts
– 12AX7, 12AX7, 12AT7, 12AX7, 12AT7, 6L6GT, 6L6GT
– Available with solid state or tube rectifier(5AR4)
– 100% hand wired in the USA on custom designed turret boards
– Mercury Magnetics Transformers
– High Grade, 3 prong molded plug NEMA 5-15P 12 foot Power cord
– Deluxe Reverb size cabinet made from solid pine with precision cut finger joints
– Two different speaker arrangements available
– 1 x 12” using a Jensen Tornado Classic Neodymium speaker
– 2 x 10″ using two Jensen Tornado Classic Neodymium speakers
– 40 – 42 Pounds (approximate weight – density of cabinet wood can affect overall weight)
– MSRP: $3,750

DSR100 – 100 Watts
– 12AX7, 12AX7, 12AT7, 12AX7, 12AT7, 6L6GT, 6L6GT, 6L6GT, 6L6GT
– Solid state rectifier
– 100% hand wired in the USA on custom designed turret boards
– Mercury Magnetics Transformers
– High Grade, 3 prong molded plug NEMA 5-15P 12 foot Power cord
– Twin Reverb size cabinet made from solid pine with precision cut finger joints
– 2 x 12″ Lightweight Jensen Tornado Classic 100 speakers
– 52 Pounds (approximate weight – density of cabinet wood can affect overall weight)
– MSRP: $4,000
